Product Description
Feature
•Milling Cutter for rough machining and semi-finishing(±7 μm) of mold steel, components and materials with HRC20°-48° hardness.
•Easy to polish, high accuracy and concentricity high.
•A variety of flute lengths are available, and wide range of uses.
•Recommended oil mist cooling.
•Applicable machines: manual milling machines, CNC milling machines, CNC machining centers, engraving machines, high-speed machines, etc.
Specification
| Type | Specification | Flute dia（D） | Flute length | Shank dia(d) | Overall L
|
| Standard | D1.0X3XD4X50 | 1.0 | 3 | 4 | 50 |
| D1.0X3XD6X50 | 1.0 | 3 | 6 | 50 |
| D1.0X4XD4X50 | 1.0 | 4 | 4 | 50 |
| D1.0X6XD6X50 | 1.0 | 6 | 6 | 50 |
| D1.5X4XD6X50 | 1.5 | 4 | 6 | 50 |
| D1.5X4.5XD4X50 | 1.5 | 4.5 | 4 | 50 |
| D2.0X6XD4X50 | 2.0 | 6 | 4 | 50 |
| D2.0X6XD6X50 | 2.0 | 6 | 6 | 50 |
| D2.5X7XD4X50 | 2.5 | 7 | 4 | 50 |
| D2.5X7XD6X50 | 2.5 | 7 | 6 | 50 |
| D3.0X8XD3X50 | 3.0 | 8 | 3 | 50 |
| D3.0X8XD4X50 | 3.0 | 8 | 4 | 50 |
| D3.0X8X6X50 | 3.0 | 8 | 6 | 50 |
| D3.5X10XD4X50 | 3.5 | 10 | 4 | 50 |
| D3.5X11XD6X50 | 3.5 | 11 | 6 | 50 |
| D4.0X11XD4X50 | 4.0 | 11 | 4 | 50 |
| D4.0X11XD6X50 | 4.0 | 11 | 6 | 50 |
| D4.5X13XD6X50 | 4.5 | 13 | 6 | 50 |
| D5.0X13XD5X50 | 5.0 | 13.0 | 5.0 | 50 |
| D5.0X13XD6X50 | 5.0 | 13.0 | 6.0 | 50 |
| D5.5X13XD6X50 | 5.5 | 13.0 | 6.0 | 50 |
| D6.0X15XD6X50 | 6.0 | 15.0 | 6.0 | 50 |
| D6.5X10XD8X60 | 6.5 | 10.0 | 8.0 | 60 |
| D6.5X17XD8X60 | 6.5 | 17.0 | 8.0 | 60 |
| D7.0X17XD8X60 | 7.0 | 17.0 | 8.0 | 60 |
| D7.5X17XD8X60 | 7.5 | 17 | 8 | 60 |
| D8.0X20XD8X60 | 8 | 20 | 8 | 60 |
| D8.5X23XD10X75 | 8.5 | 23 | 10 | 75 |
| D9.0X23XD9X75 | 9 | 23 | 9 | 75 |
| D9.0X23XD10X75 | 9 | 23 | 10 | 75 |
| D9.5X25XD10X75 | 9.5 | 25 | 10 | 75 |
| D10.0X25XD10X75 | 10 | 25 | 10 | 75 |
| D10.5X25XD12X75 | 10.5 | 25 | 12 | 75 |
| D11.0X28XD12X75 | 11 | 28 | 12 | 75 |
| D11.5X28XD12X75 | 11.5 | 28 | 12 | 75 |
| D12.0X30XD12X75 | 12 | 30 | 12 | 75 |
| D13.0X45XD14X100 | 13 | 45 | 14 | 100 |
| D14.0X45XD14X100 | 14 | 45 | 14 | 100 |
| D15.0X45XD16X100 | 15 | 45 | 16 | 100 |
| D16.0X45XD16X100 | 16 | 45 | 16 | 100 |
| D17.0X45XD18X100 | 17 | 45 | 18 | 100 |
| D18.0X45XD18X100 | 18 | 45 | 18 | 100 |
| D20.0X45XD20X100 | 20 | 45 | 20 | 100 |
| D22.0X45XD22X100 | 22 | 45 | 22 | 100 |
| D25.0X45XD25X100 | 25 | 45 | 25 | 100 |
| Long Shank | D1.0X3XD4X75 | 1 | 3 | 4 | 75 |
| D1.5X4.5XD4X75 | 1.5 | 4.5 | 4 | 75 |
| D2.0X6XD4X75 | 2.0 | 6 | 4 | 75 |
| D2.5X7XD4X75 | 2.5 | 7 | 4 | 75 |
| D3.0X8XD3X75 | 3.0 | 8 | 3 | 75 |
| D3.0X8XD4X75 | 3.0 | 8 | 4 | 75 |
| D3.0X8XD6X75 | 3.0 | 8 | 6 | 75 |
| D3.0X8XD4X100 | 3.0 | 8 | 4 | 100 |
| D3.0X8XD6X100 | 3.0 | 8 | 6 | 100 |
| D3.5X10XD4X75 | 3.5 | 10 | 4 | 75 |
| D4.0X11XD4X75 | 4.0 | 11 | 4 | 75 |
| D4.0X11XD4.0X100 | 4.0 | 11 | 4 | 100 |
| D4.0X11XD6X100 | 4.0 | 11 | 6 | 100 |
| D4.5X13XD6X75 | 4.5 | 13 | 6 | 75 |
| D5.0X13XD5X75 | 5.0 | 13.0 | 5.0 | 75 |
| D5.0X13XD6X75 | 5.0 | 13.0 | 6.0 | 75 |
| D5.0X13XD6X100 | 5.0 | 13.0 | 6.0 | 100 |
| D5.5X13XD6X75 | 5.5 | 13.0 | 6.0 | 75 |
| D6.0X15XD6X75 | 6.0 | 15.0 | 6.0 | 75 |
| D6.0X15XD6X100 | 6.0 | 15.0 | 6.0 | 100 |
| D6.5X17XD8X75 | 6.5 | 17.0 | 8.0 | 75 |
| D7.0X17XD8X75 | 7.0 | 17.0 | 8.0 | 75 |
| D7.0X17XD8X100 | 7.0 | 17.0 | 8.0 | 100 |
| D7.5X17XD8X75 | 7.5 | 17 | 8 | 75 |
| D8.0X20XD8X75 | 8 | 20 | 8 | 75 |
| D8.0X20XD8.0X100 | 8 | 20 | 8 | 100 |
| D8.0X20XD8X150 | 8 | 20 | 8 | 150 |
| D8.0X40XD8X150 | 8 | 40 | 8 | 150 |
| D9.0X23XD10X100 | 9 | 23 | 10 | 100 |
| D10.0X25XD10X100 | 10 | 25 | 10 | 100 |
| D10.0X25XD10X150 | 10 | 25 | 10 | 150 |
| D11.0X28XD12X100 | 11 | 28 | 12 | 100 |
| D12.0X30XD12X100 | 12 | 30 | 12 | 100 |
| D12.0X30XD12X150 | 12 | 30 | 12 | 150 |
| D16.0X40XD16X150 | 16 | 40 | 16 | 150 |
| D16.0X40XD16X200 | 16 | 40 | 16 | 200 |
| D18.0X40XD18X150 | 18 | 40 | 18 | 150 |
| D20.0X40XD20X150 | 20 | 40 | 20 | 150 |
| D20.0X40XD20X200 | 20 | 40 | 20 | 200 |
NOTE:
1. During using, appropriately reduce the cutting speed and feed rate, which can prolong the service life of the milling cutter.
2. When working, it is necessary to add cutting fluid to protect the knife edge, so that the cutting is smoother.
3. When the oxide film or other hardened layer remains on the surface of the workpiece, it can be removed by reverse milling.
Detailed Images
| Details •The arc relief angle makes the tool more wear-resistant, the flat relief angle makes the tool sharper and stronger, the cutting process is lighter and faster, and the tool life is longer under the double cooperation. •Smooth chamfering, easy and fast installation of the chuck, high gloss surface.
• Large chip removal design
|
|
|
| AITIN-L application range: •Suitable for the cutting of ordinary stainless steel, hardened stainless steel, ordinary die steel, hardened die steel, cast iron, copper and alloy steel with hardness below HRC45 degrees.

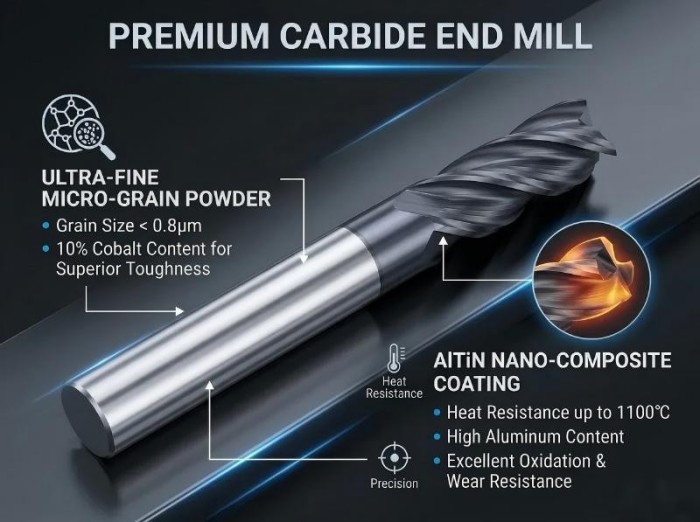

•The AL coating made with Japanese advanced technology and equipment contains high-component aluminum, which not only has high temperature oxidation resistance (800℃), but also can exert the best performance on processing tools under dry or high-speed conditions.
• Type: Deep groove milling cutter, ball end milling cutter, round nose milling cutter, can meet the finishing of your product surface quality.
|
|
|
| AITIN-S application range: •Suitable for high-efficiency cutting processing of ordinary steel, pre-hardened die steel cast iron, copper, alloy steel, ductile cast, and processing of materials with hardness below HRC48 degrees.
•The AS COATING coating made with Japanese advanced technology and equipment contains heat-resistant element silicon, which not only has high temperature oxidation resistance (1100°C), but also can exert the best performance on processing tools under dry or high-speed conditions.
• Types: Milling Cutter, ball Milling Cutter, round nose milling cutters, can meet the finishing of your product surface quality. |
